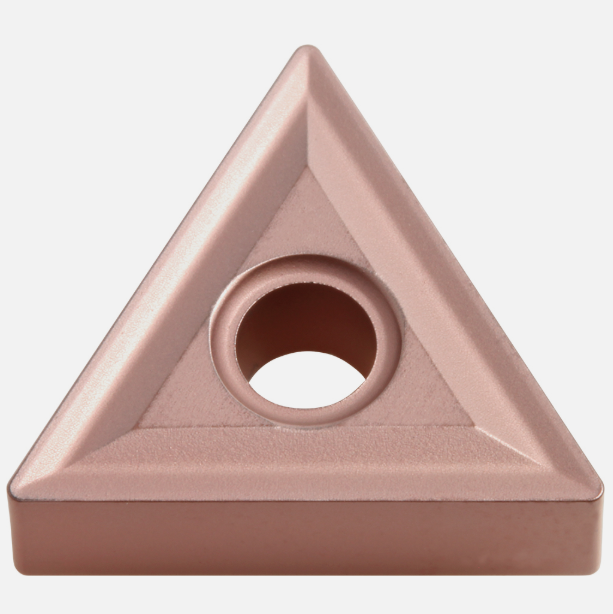

Roughing negative insert suitable for cutting on cast iron.


It can be combined with the external turning toolholders  :   ΜΤΕΝΝ2525Μ22, ΜΤΕΝΝ2525Μ22, MTJNL2525M22, MTJNL2525M22, MTJNL2525M22, MTJNL3225P22, MTJNR2525M22, MTJNR2525M22 and  MTJNR3225P22.


It can be combined with the internal turning toolholders :  S32U-MTQNR22, S32T-MTUNR22, S40V-MTUNR22, S50U-MTFNR22 and  S50W-MTUNR22.



Dimensions
A (mm) :12.7
T (mm) :4.76
Ød (mm) :
5.16
rε   :
0.4
Cutting Conditions
Chipbreaker  :
-
Insert grade  :
CA315
Cutting depth ap (mm)  :
2.0 - 6.0
Feed f (mm/rev)  :
0.3- 0.6
Cutting speed  Vc (m/min)  :
160 - 370


Write a review

   Bad           Good

  • Brands KYOCERA
  • Product Code:ATNMG2204CA315
