Square shoulder milling cutter without coolant hole.
It can be combined with the TNKU 120608ER-GL XP3035, TNKU 120608ER-GM XP2040, TNHU 120608ER-NM CK010, TNKU 120608ER-GM XP3035 and TNKU 120608ER-GL XP2040 inserts.
 | |

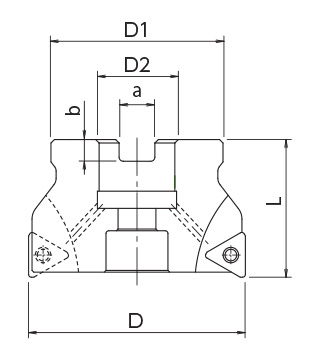

| Dimensions | |
| D (mm) : | 125.0 |
| D1 (mm) : | 90.0 |
| D2 (mm) : | 40.0 |
| L (mm) : | 63.0 |
| a (mm) : | 16.4 |
| b (mm) : | 9.0 |
| Number of Teeth (inserts) : | 7 |
| Applicable insert size : | 12 |
| Cutting Conditions | |
Click on image to view cutting conditions in larger scale | |
