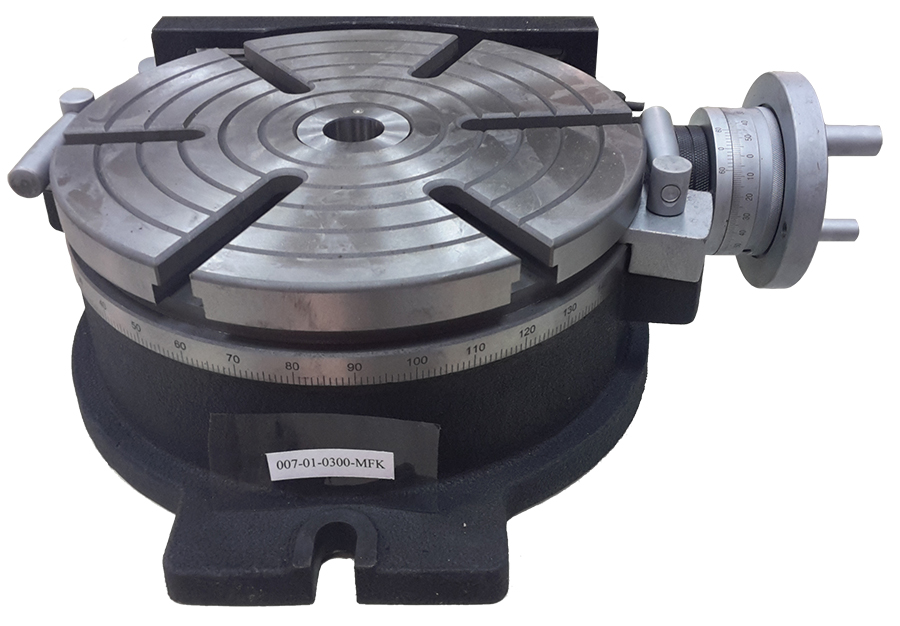

Horizontal & vertical rotary table suitable for collets chuck 250mm.
 | |
| Dimensions | |
| Diameter of table (mm) : | 320 |
| Morse taper of center hole : | MT4 |
| Dia of center hole : | Φ40X10 |
| Center height for Vert. Mounting (mm) : | 210 |
| Width of T-slot (mm) : | 14 |
| Adjacent angle of T-slot : | 60° |
| Width of locating key (mm) : | 18 |
| Tranmission radio of worm gear : | 0.104166667 |
| Readout of handwheel : | 1' |
| Min. value of vernier : | 10" |
| Indexing accuracy : | 60" |
| Max. workload (Hor.) (kg) : | 250 |
| Max. workload (Vert.) (kg) : | 125 |
| Case dimensions (mm) : | 590 X 580 X 250 |
